It solves the problem of the moment connection to the main beam without resort to exotic materials or construction techniques.
As for the rig, what I meant to say was that landsailors sail at very low angles due to their speed, for a watersailor you'll probably want a sail with much more shape.
Let me go done and measure the diameters of my class 5 landyachts.
But before you spend any money make sure you can get hold of the glue. If you can't then buying SS stuff will be useless.
Also we need to work out how to test this setup before we have anything build. See later in this post.
....
Okay may two landyachts have a "pod" of :
-1- 60 mm x 4 mm steel ; length 420 mm
-2- 62 mm x 3 mm steel (even appears to be 2.5 mm wall) ; length 240 mm
The second pod (-2-) is the newer landyacht and before this one the builder had build at least 3 others. He said to me that a few lessons learned went into my landyacht. I bought the yacht of yet another person so the builder wasn't bullshitting me.
The bottom section of two alu masts I have/measured are 48x4.5 mm and 50x8 mm, the first mast quoted is the youngest.
Most of these components were chosen on account of their availability. Both yachts and masts were homebuild. Some drivers like to have their pod diameter to be noticeably larger then the mast bottom diameter so that the mast can move upright when riding downwind after being raked far back during the upwind. This has to do with the position of the weight and wheels of the craft. These considerations shouldn't concern us. So I guess we'll be smart to start at :
pod : 55 mm x 3 mm steel length 300 mm
mast bottom 50 mm x 5 mm alu.
This should give a rather tight fit. And 2 inch alu tubing has a 50.4 mm outer diameter so that should be easy to find in the USA.

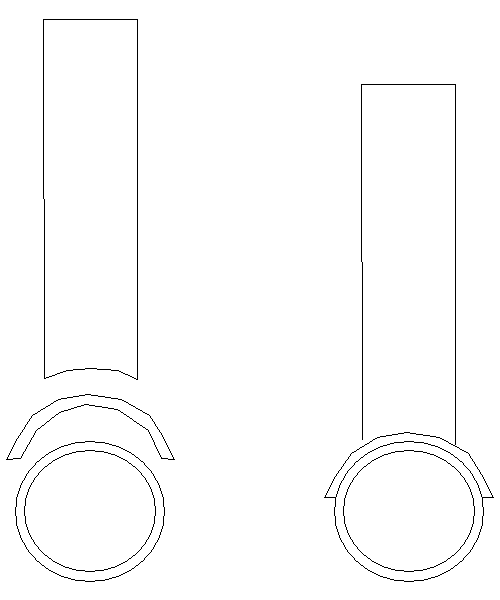

I'm looking to make the mast pod something like this :
Where the top pod (steel tube) is welded to the bend steel plate and which is then later glued to the top of the alu 80x2 mm mainbeam.
I would like to go close to 180 degrees bend on the steel plate as that really helps avoiding tensile stresses in the glue layer. There is no need to go for a full 180 degree. Something like 160 will be fine. Additionally having a large wrap around really increases the surface area, resulting in lower stresses in the glue layer overall. This makes the joint more acceptable of "bad" glueing.
I also give you the design of a class 5 mast, again note that several methods exist to build up such a mast. My youngest mast uses less components as the builder was able to find tubes will thicker walls then 2 mm.
I want to test this setup under some considerable bending loadings fore-aft and side-to-side and see if the glue holds.
This means we have to lock the ends of the 80x2 alu beam in some way. Does anybody have a good idea on how to do this in an inexpensive manner. Remember this 80x2 beam will be under alot of torsion loading. Simply jamming it in a vice will most definately not work.
We could glue the ends to a wide wooden beam, making sure that teh glue area is many times larger then of the mast pod. These beams can then be linked up by a crossbeam from which to mount the mainsheet system. We then only need to insert a tube acting as a mast with a boom supported by a high strength line and start pulling it apart.
If this fails after say 3 times the expect laods then we will cut the pod increasingly smaller till the vertical part of the pod bends or deforms then we know hoe tall the pod at least needs to be. On the "standard" landyacht this pod looks rather short indeed.
Would something like this work for you Flatlander ?
I have used this glue (2015) many times with mixed success for bonding aluminium to aluminium. I have to admit I gave up on it in the end as I could not get consistent results. Some joints are still going strong after two years, some identical joints failed within days under light loads.
I believe the key phrase in the document you posted is "apply to a pre-treated and dry surface". What pre-treatment is necessary to get a high strength reliable joint? I thought that I was careful in my pre-treatment. I would anodise, lightly abrade then and then degrease with acetone.
The problem as I see it with these glues is consistency especially in the environments used by a home builder.
The following document lists the surface preparation and pre-treatment recommended by araldite.
I mostly used non-anodised aluminium in my glue jobs.
The alu-oxide surface layer does interfere badly in other situations like welding so maybe it does so too with respect to glueing.
Also preparation would probably scaring the glued area with small surface cuts. It needs to be as rough as possible. I think in the document they refer to sandblasting of the area that is to be glued. This does of course two things. It removes the alu-oxide surface layer and (can) make the area rought.
Also Gareth can you describe some of the joints where the glue failed. Can you have been suffering from peel-off failure ? Were you lift one tip of the jointed material breaking the bound and progress further each time breaking only a small portion of the bound instead of the whole bound in one go.
I have thought about this peel-off problem and I think that blind riveting the corners of the plate should take care of that to a large extend.
This is all very interesting and I would love to hear more about your experience.
With regard to anodising. I hardly have any anodized aluminium on my boat anymore. Only my mainbeam and mast are anodised. All the other stuff like rearbeam, boom, spi pole , mast rotation arm are non-anodised tubes. They hold up just fine. They turn a little dark overtime but that is it.
I won't try to hard to get the F12 components to be anodised. If I build one then I won't anodise the alu parts.
Wouter
Last edited by Wouter; 01/03/0702:51 PM.
Wouter Hijink Formula 16 NED 243 (one-off; homebuild) The Netherlands
I'll go after Dotan and see what their rudders costs. In short I'll work on the rudder setup.
The mast is pretty much finished as we just copy that of the landyachts. Ohhh, I will contact a friend with a "standard" landyacht and get his pod measurements and if possible his mast measurements.
The rearbeam design I will just take of my own F16 boat (3 years and still going strong), so that is finished as well.
I'll work out the traveller system and prep that to be test by someone as well. This testing will probably be done by myself as I have such a system on another landyacht (I need to clear out my shed !)
The only real thing we are left with are the hull really. Gareth, is that new material you are using for your hulls attractive for this F12 ? Any other suggestions in the way of material for the hulls. How much do you know about core matt hull production ?
hum, Like I said most testing needs to be done on the beam landing and pod, the rest has pretty much been developped to a good working design in both cats and landyachts already.
Wouter
Wouter Hijink Formula 16 NED 243 (one-off; homebuild) The Netherlands
We need to work out how big we are going to make the mast base plate.
Is it possible that you first get some info of the steel company and then get back with us. Then we can look over the design one more time and make sure we get everything right.
Currently I'm thinking a base plate of 160 degrees around a 80x2 tube with 100 mm length. That would be almost a 100x100 mm square. Thickness of the steel plate ? Well, find out till what thickness they can bend the plate around 80 mm tube.
That should be enough to use a safety factor of 3. In the final design I'd like more but I want the joint to break to give us at least some idea of where the limit it. If it holds up under everything then we still don't know much.
Wouter
Wouter Hijink Formula 16 NED 243 (one-off; homebuild) The Netherlands
It solves the problem of the moment connection to the main beam without resort to exotic materials or construction techniques.
I understand what you mean but I would first like to try to do without it. The simpler the better.
Quote
As for the rig, what I meant to say was that landsailors sail at very low angles due to their speed, for a watersailor you'll probably want a sail with much more shape.
That is absolutely correct, however this only means that the F12 sails must be cut with alot more luff round. Actually the Moth sailboats use a sleeved mainsail very similar to the "Standard" landyachts. This gives me extra assurances that we can succesfully convert the class 5 landyacht rig to a sailboat. Will probably also need to widen the sleeve itself so there is enough room to have the straight mast slide through the curved sleeve.
Wouter Hijink Formula 16 NED 243 (one-off; homebuild) The Netherlands
Ok, If you must design a new boat. Why would you start by developing a mast base that has poor repeatability in the home build arena. Glue seems like a bad idea. If the boat remains a take apart as discussed then why not sleeve your pod(mast base). Slide on the front cross bar and then pin it.(does that make sense?) No bending required. Just coping and a weld. You could actually have mast rake adjustment if desired. It could also be all aluminum if in a fresh water application.
The only real thing we are left with are the hull really. Gareth, is that new material you are using for your hulls attractive for this F12 ? Any other suggestions in the way of material for the hulls. How much do you know about core matt hull production ?
I would think that Twintex would be ideal as it is both lightweight and very robust i.e. will take more abuse than anything else you could build with, but its not really suitable for homebuild.
I don't have any experience of core matt hull production.
Pat, I totally agree with your posts on this thread. It is not about the boat.
