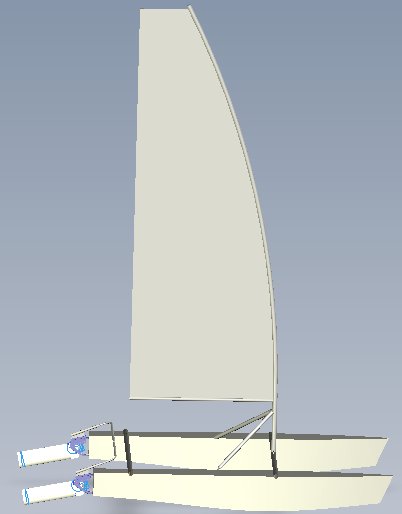

So here is the first 3-D impression of the F12 I've been working on, with many thanks to Grob who was kind enough to create it :
I'm trying to give you all a 3-D viewer and the 3-D drawing so you can all move it about and rotate it to your own will.
Okay here it is, everyone can downlaod the viewer from :
http://www.solidworks.com/pages/products/edrawings/eDrawings.htmland download the file to be viewed from here :
http://www.xs4all.nl/~whijink/F12/F12_impression_29_oct_2007.easmThe mast is bend to its maximal position, which coincides with maximal mainsheet tension. The mainsheet itself is a combined with the downhaul into one single setup. Basically the mainsheet is sheeted of the boom and its bottom part attaches to a line strop that is tied off to the same attachment points on the hulls as the mast support rods have. This way the F12 basically has a centre sheeting setup allowing the rear beam to be fully clear. The tillers of the rudders can protrude over the mainbeam that way. When the mainsheet is slackened then the mast will straighten out. The mast is of course unstayed (free standing) and be more straight up in normal sailing.
The bows are fully clear as the mast support rod keep the mast were it is. Interesting enough this setup is extremely efficient in the way it handles the rig loads. The situation is even so efficient that at maximum mainsheet load the main beam is actually pushed upward ! Nearly all forces cancel one another out and therefor no dolphin striker is needed, saves weight and saves cost. This also allows the platform to be placed on top of the car or trailer more easily. It can now slide along on its beams over two parallel planks and eventually be held by cut-outs in the plancks.
Some elements in this design may appear strange but there is a very good reason to have them. Most are not immediately obvious.
At this time I'm not to happy with the hulls as soon and I'm working on some alternatives. One of which is a deep V-ed hull.
I hadn't realized it myself early on but since then the designs I've been working on don't have skegs or daggerboards in any way of form.
What alot of people aren't realizing yet is that a small lightweight catamaran like the F12 will have a relatively large hull area for a given enclosed volume. Much more then say an 18 or 20 footer version. You are getting this (very low) aspect sideways resisting area practically for free as you have have it in order to float the craft anyway. This situation is made more pronounced by the fact that other dependencies make the F12 rig relatively small in comparison to 18 and 20 footers and the fact that oversize rudders are to be used (coming of larger boats like the Hobies and Dotans). Basically the whole situation is going towards hulls with a large sideways slip resisting area, fitted with a small rig producing little sideways force, on a platform with oversized rudders. I'm thinking lets go the supercat 15 and supercat 17 way on this design. Let the rudders and hulls combine to resist the small sideways forces and reduce complexity and cost ones more.
Interestingly enough the F12 as it is designed here will have MORE sideways resistance without skegs or boards then the boarded Laser-1. And that is when only looking at the hulls and not including the rudders. Of course the F12 will both have larger rudders and two rudders when compared to the Laser-1. When these are made part of the equation then things will start to happen.
Strange as it may seem but I expect this design to be an very good pointer. Its relatively low boat speed will positively impact on this as well. Ever seen laser-1 points in relation to a large beach cat, think along those line but with more speed.
The beams are made from the same tubing as the bottom section of the mast, again saves costs. The beams are spaced wide apart this will improve platform stiffness and space on the trampoline.
As of yet I have not designed a quick release system for the beams and I'm still satisfied with using the conventional 8 bolt setup where the nuts are welded to a plate inside the hulls. Basically you can fasten and release the beams by turning the bolts from the outside. That should be easy enough. Rigging everything else is a matter of seconds, this includes the whole rig. The only exception will be the trampoline. Currently it is sleeved over the mainbeam then a zippered sleeve goes over the rearbeam and it is attached to the sides of the hulls using a line and a handful of eyestraps. As the trampoline is relatively small and the span between the hulls is narrow I don't expect this trampoline to need much tension. I estimate under 5 minutes to fit the trampoline and I'm convinced rigging the rest takes less then 5 minutes as well. So 10 minutes from completely disassembled into major parts like sail, mast, hulls, beams, trampoline, rudders to ready to sail. Significantly less if the platform is transported in one piece.
Performance is identified as superior to any of the laser-1 versions, slighly faster then the Hobie wave and sligtly slower then the Hobie 14.
Optimal weight range 40 - 65 kg, basically making the target group 12-16 year old teenagers and light adults like women.
Wouter
